TORP TC1000 CONTROLLER.
a perfect power upgrade for your Surron ultra bee*
Powerful
50 kW
Light
1,3 kg
Plug & Play
Ready in 20 minutes
*TC1000 controller is also compatible with the SurRon Light Bee / Segway X260 and Talaria MX3/MX4, however for best performance, we recommend pairing it with the SurRon Ultra Bee or with one of the Torp engines (TM25 / TM40 / TM50 & TM50Pro).
TC1000 controller has been developed to boost the performance of the SurRon Ultra Bee e-bikes and the Torp TM50 motor. Easy to install and configure in just a couple of clicks in the app.
It is also compatible with the SurRon Light Bee / Segway X260 and Talaria MX3/MX4- For the best performance on the Light Bee bikes we recommend pairing it with the Torp Motor TM25 and the Torp Motor TM40.

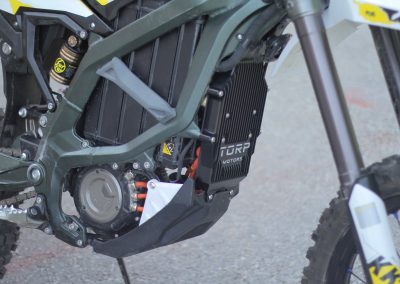

THE TC1000 & SURRON ULTRA BEE ARE A PERFECT MATCH.
With the TC1000 there are no trade-offs: Upgrade in power doesn`t have to mean a downgrade in stock features.
The Torp TC1000 controller is the only controller on the market that keeps all the cool SurRon Ultra Bee functions intact while boosting your bike`s performance!
THE LIST OF STOCK FEATURES THE TC1000 WILL PRESERVE:*
This was made possible by our developers who created an ECU (a small controller) integrated in your wiring harness that communicates with every inch of your bike.
The most powerdense controller in the world!
Compared to the TC500, the TC1000 controller packs 100% more power in just 30% extra space!
GET THE MOST OUT OF YOUR MOTOR.
The power estimates when the TC1000 is installed on the SurRon Ultra Bee:
TC1000 & Stock SurRon Ultra Bee 72V battery
TC1000 & Stock bypass surron ultra bee 72V battery*
TC1000 & Aftermarket 80V battery
The power estimates with the 72V battery on the SURRON LIGHT BEE:
TC1000 & SurRon Light Bee stock motor
/ Segway X260
TC1000 & Torp motor TM25
TC1000 & Torp motor TM40

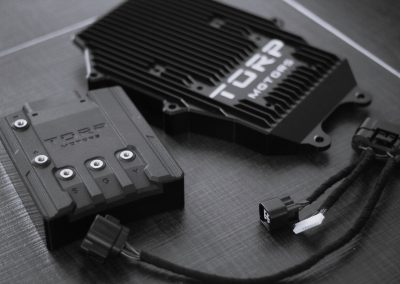

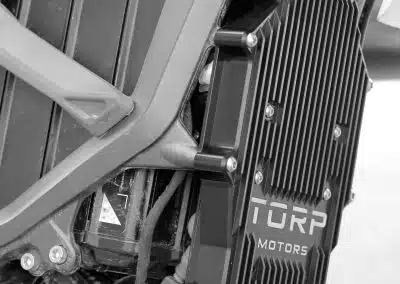

NEW aluminum cover.
For even more efficient heat-dissipation we have designed new, aluminum covers for SurRon Ultra Bee. Not only does the cover keep the TC1000 protected against external impacts, but it’s also expertly designed to dissipate heat swiftly, ensuring the controller stays cool even on the roughest rides.
Plus, with a range of colors available, you can select the one that best suits your style. Simple, efficient, and tailored to you.
dedicated display.
Despite the fact that the TC1000 Controller works perfectly with the stock SurRon Light Bee/ Ultra Bee display, we have developed a dedicated LCD, with which you will be able to track all of your controller and battery data in real time. This a perfect solution for all of you who do not want to use your smartphone while riding, but still want to keep an eye on all of your stats during the ride.
NEW: Now available in full color!
Check out the dedicated USER MANUALS for each display:
IN COMMUNICATION WITH THE STOCK SURRON ULTRA BEE & SURRON LIGHT BEE BMS.
Use this unique feature to keep an eye on your battery`s health, state of charge, and temperature.
change your settings through the app.
Although the Controller is pre-configured for SurRon and Segway bikes, you can change features and power settings through a user-friendly mobile App.
With the mobile App, available for iOS and Android phones, you`ll have all the important stats in the palm of your hand.
Click to install:
PLUG&PLAY.
Ready in 20 minutes with the QUICK START MANUALS:
For detailed information check out the USER MANUALS:
SPECIFICATIONS.
– Field-oriented control (FOC)
– Supported batteries: from 60V up to 80V nominal 22S (92,4V fully charged)
– Max Power: 50kW
– Sensored (HALL Encoder) and sensorless control
– Max Battery Current: 700 A
– Max phase current: 1000 A
– Efficiency up to 99%
– Working temperature: from -15 to 75 °C
– Bluetooth communication
– Pre-calibrated: Easy calibration through mobile app
– Overcurrent, overvoltage, undervoltage and overtemperature protection
– Communication with stock BMS
– Different regenerative braking and throttle modes
– Weight: 1,3kg
– Features: Mobile App (IOS & Android), stock SurRon display
– Protection class: IP67*
– Regular firmware updates
* While Torp controllers are rated IP67, making them highly water-resistant, the wiring harnesses for both the controller and bike are not waterproof. In case your bike is exposed to water in any way, it is mandatory to apply dielectric grease inside all connectors.
