Which one fits your ride?
Start with your bike, the battery you have and the motor you want next. Here's how to choose between TORP's two controllers for SurRon and Talaria.
Start here if your Light Bee or Talaria build fits within the TC500's capabilities.
See the kit's price, availability and options in the webshop.
Choose it when your bike or planned motor needs TC1000, or your complete setup can use its higher output.
See the kit's price, availability and options in the webshop.
A bigger controller doesn't automatically mean more power. On the listed stock-battery, stock-motor Light Bee and Talaria setups, both controllers have the same estimated output. The battery and motor determine how much of the controller's capability you can use.
Choose your model, then plan the parts around it.
Keeping the stock motor? TC500 is a strong starting point. It also supports TM25. Choose TC1000 if a TM40 Pro is part of your plan.
View compatible kits
TC500 does not fit the Ultra Bee. TC1000 works with the stock motor or TM50 Pro / Speed, and keeps factory traction control working.
View compatible kits
Both controllers use your stock motor. Compare power for your battery below. MX3 / MX4 / Sting R share a kit; MX5 uses a separate kit.
View compatible kitsThese examples keep the stock motor. Compare the estimated peak system power of each controller on the same bike and battery.
Stock battery + stock motor
| Bike / battery | TC500 | TC1000 |
|---|---|---|
| Light BeeStock 60 V · 32 / 34 / 40 Ah | 7 kW | 7 kW |
| Light BeeStock 60 V · 38 Ah | 8.5 kW | 8.5 kW |
| Ultra BeeStock 72 V | Does not fit | 19 kW |
| Ultra Bee2025 stock 72 V | Does not fit | 27 kW |
| Talaria MX3Stock 60 V | 8 kW | 8 kW |
| Talaria MX4 / Sting RStock 60 V | 11.5 kW | 11.5 kW |
| Talaria MX5Stock 72 V | 17 kW | 17 kW |
Upgraded battery + stock motor
| Bike / battery | TC500 | TC1000 |
|---|---|---|
| Light BeeUpgraded 80 V | 19 kW | 19 kW |
| Ultra BeeUpgraded 80 V | Does not fit | 32 kW |
| Talaria MX3Upgraded 80 V | 19 kW | 19 kW |
| Talaria MX4 / Sting RUpgraded 80 V | 20 kW | 20 kW |
| Talaria MX5Upgraded 80 V | 22 kW | 23 kW |
Peak estimates, not guaranteed output. Battery current capability, state of charge, temperature and settings affect what your bike can deliver. A battery's voltage label alone does not establish compatibility.
Talaria battery check: Greenway packs support BMS communication. SCUD packs do not. Read the model-specific guidance.
Plan around the motor you want to run, and the battery it needs.
The TM25 works with both controllers. On an 80 V pack, the listed estimates are 30 kW with TC500 and 31 kW with TC1000. A TM25 upgrade alone doesn't require replacing your TC500.
Plan a TM25 setupTM40 Pro pairs with TC1000. The 80 V setup is estimated at up to 50 kW. Plan the battery and drivetrain for the complete build; fitting the controller alone won't deliver that figure.
Plan a TM40 Pro setupBoth TM50 motors pair with TC1000: Pro emphasizes torque, Speed emphasizes RPM. The listed 80 V setups reach up to 50 kW. Factory traction control stays available.
Choose my Ultra Bee motorExplore the motor details in the TORP motor comparison.
Both standard versions support up to 80 V nominal. Their current limits and supported motor options are the key differences.

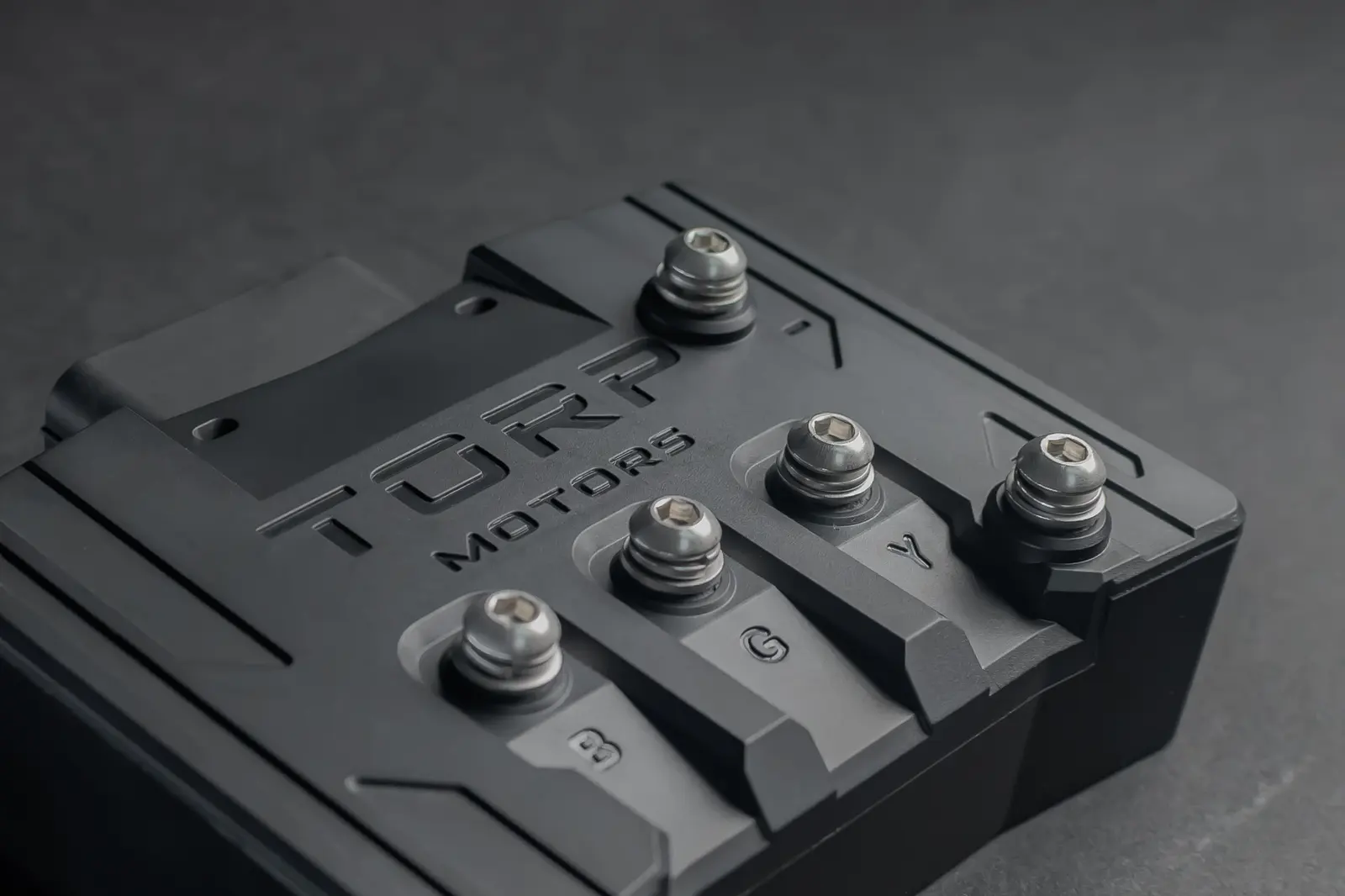

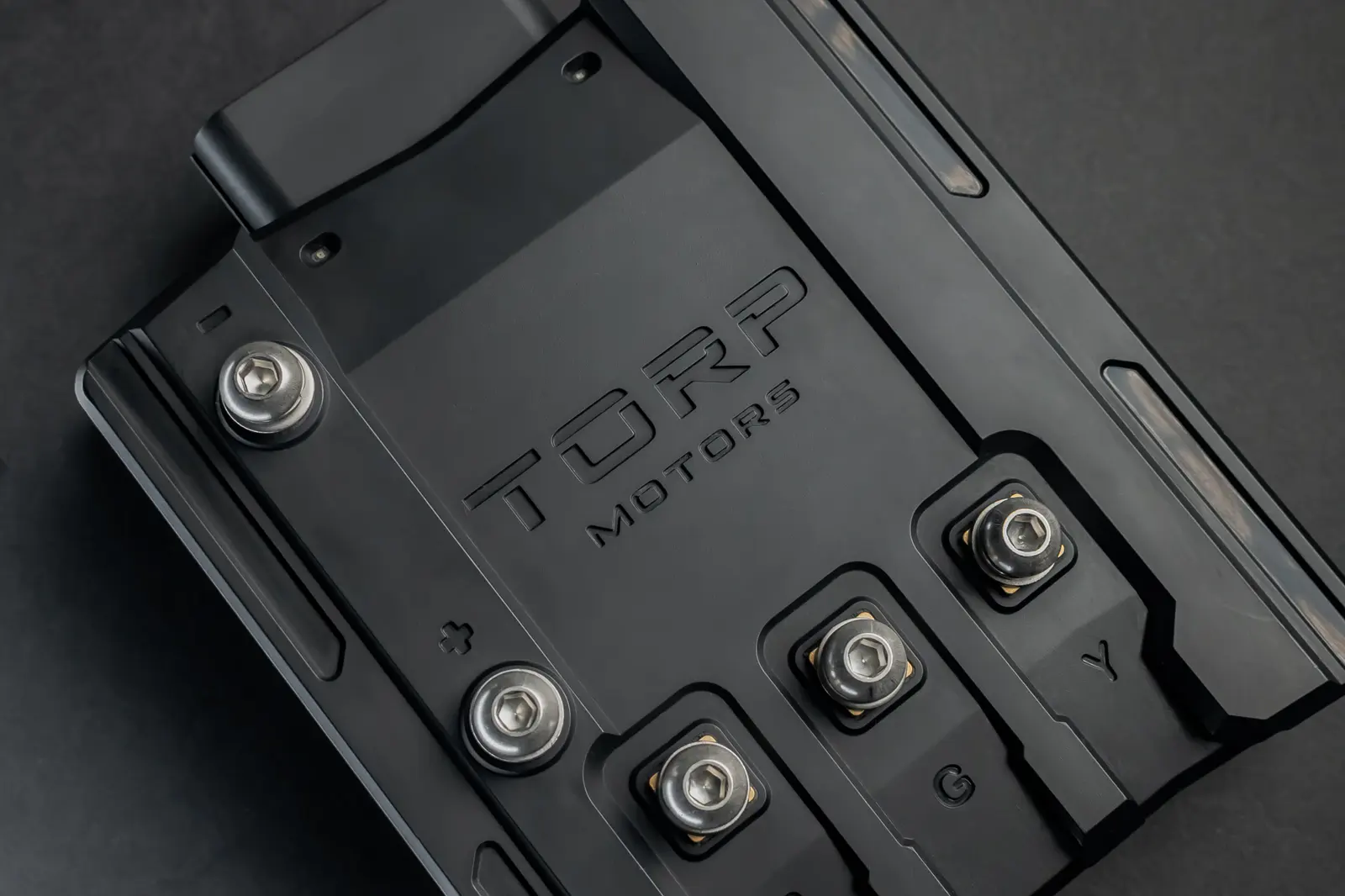

| Specification | TC500 2.0 | TC1000 2.0 |
|---|---|---|
| Bikes | Light Bee; Talaria MX3 / MX4 / Sting R / MX5 | Light Bee; Ultra Bee; Talaria MX3 / MX4 / Sting R / MX5 |
| Battery range | 60 V – 80 V (22S nominal, 92.4 V fully charged) | 60 V – 80 V (22S nominal, 92.4 V fully charged) |
| Maximum system power | Up to 30 kW (with the TM25 motor, at 80 V) | Up to 50 kW with a compatible upgraded motor and battery |
| Battery current limit | 350 A | 700 A |
| Phase current limit | 500 A | 1000 A |
| TORP motors on Light Bee | TM25 | TM25 or TM40 Pro |
| TORP motors on Ultra Bee | Does not fit | TM50 Pro or TM50 Speed |
| Tuning | TORP app · iOS & Android | TORP app · iOS & Android |
| Weight | 1 kg | 1.3 kg |
| Protection rating | IP67 | IP67 |
| Warranty | 2 years | 2 years |
| Product details | Explore TC500 | Explore TC1000 |
Battery current is drawn from the pack. Phase current is delivered to the motor; a 1000 A phase-current limit does not mean the battery must supply 1000 A.
On the listed Light Bee and Talaria stock setups, both controllers have the same estimated peak system power. Choose TC1000 if your future setup needs its motor compatibility or extra current capability. On the Ultra Bee, TC1000 is the compatible TORP option; TC500 does not fit.
No. Both standard 2.0 controllers support batteries up to 80 V nominal (22S, 92.4 V fully charged). The right choice also depends on your bike, motor and the current your battery can supply. Confirm the full combination in Build My Setup.
Check your complete setupYes, if you choose the TM25. With an 80 V battery, the listed TM25 estimates are 30 kW on TC500 and 31 kW on TC1000. A TM40 Pro upgrade requires TC1000. Motor choice and the complete setup matter more than the controller name alone.
This guide covers MX3, MX4 / Sting R and MX5. Select the MX3 / MX4 / Sting R kit or the separate MX5 kit as appropriate. Do not assume another Talaria model uses the same kit. Greenway stock batteries support BMS communication; SCUD packs do not.
See Talaria kits and battery guidanceNo. This guide compares the standard TC500 2.0 and TC1000 2.0. TC1000 2.0 HV is a separate version currently in development. Its advertised higher-voltage and 60 kW specifications do not apply to the standard TC1000 2.0.
See TC1000 versions and HV updatesUse Shop TC500 or Shop TC1000 above, then select your bike to open its kit in the webshop. You can review current prices, availability and options there. Build My Setup helps if you want to check the complete controller, motor and battery combination first.
Read the installation guidesChoose your bike, motor and battery. Review the estimated power and matching parts before heading to the cart.
