TC1000 2.X

Product details

Planning to upgrade your stock Talaria bike? Then the TC1000 2.X controller is the way to go.

The new generation TC1000 2.X controller comes with integrated wheelie control hardware enabling advanced stability control for perfect wheelies and enhanced riding dynamics (Wheelie Control available now in beta), while automotive-standard throttle support and over-current protection safeguard performance. Next-generation components keep it resilient and reliable ride after ride.

Boost the power of your Talaria MX3 / MX4 with the TC1000 2.X controller. The max power with the stock battery on Talaria MX4 is 11,5 kW and with MX3 is 8 kW. Curious what your setup can do? Try the Power Calculator to preview expected performance.

Compatible with the stock Talaria and aftermarket (60 V, 72 V and 80 V 22S) batteries. Easy to install and even easier to adjust according to your preferences using the Torp App!

With Torp controllers, all stock Talaria features will be preserved (stock Talaria Display, kick-stand sensor, crash sensor, power mode button, and brake switch) except for the start button.

Technical details & package contents

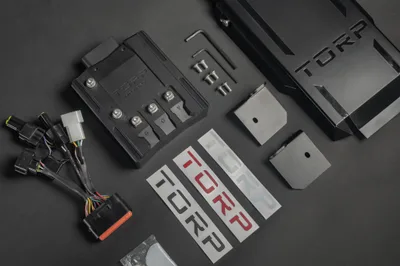

INCLUDED IN THE PACKAGE:

• 1x TC1000 Controller (version 2.X)
• 1x wire harness
• 1x plastic shield
• screws and tools needed for installation
• 2x installation brackets
• 4x stickers
• 1x pack of silicone grease
• short instructions

SPECIFICATIONS:

• Field-oriented control (FOC)
• Supported batteries: Supported batteries: from 60V up to 80V nominal 22S (92,4 V fully charged)
• Max Power: 50kW
• Sensored (HALL Encoder) and sensorless control
• Max Battery Current: 700 A

*In combination with the stock Talaria MX3 / MX4 e-motor and 80V aftermarket battery, the max power is 20 kW.

Important: The controller CAN NOT communicate with the stock Talaria battery produced by SCUD. Please read before purchasing. Other controller functionalities are intact.

• Max phase current: 1000 A
• Efficiency up to 99%
• Working temperature: from -15 to 75 C°
• Bluetooth communication
• Pre-calibrated: Easy calibration through mobile app
• Overcurrent, overvoltage, undervoltage and overtemperature protection
• Communication with stock BMS
• Different regenerative braking and throttle modes
• Weight: 1,3kg
• Features: Mobile App (IOS & Android), stock SurRon display
• Protection class: IP67*
• Regular firmware updates

*While Torp controllers are rated IP67, making them highly water-resistant, the wiring harnesses for both the controller and bike are not waterproof. In case your bike is exposed to water in any way, it is mandatory to apply dielectric grease inside all connectors. The warranty does not cover malfunction or damage arising from the use of the motor controllers in activities where frequent or extended submersion in water is expected, such as riding in streams, rivers, or flooded areas. Over time, seals and components may degrade, reducing the water-resistant effectiveness of the product. Damage resulting from this natural wear and tear is not covered by the 2-year warranty.

Installation manual

Modifying a stock electric vehicle can result in the vehicle becoming non-compliant with your local road safety regulations. It’s essential to consult with experts or authorities before modifying your vehicle to ensure adherence to road legality.
