TC1000 2.X

Product details

The new generation TC1000 2.X controller comes with integrated wheelie control hardware enabling advanced stability control for perfect wheelies and enhanced riding dynamics (Wheelie Control available now in beta), while automotive-standard throttle support and over-current protection safeguard performance. Next-generation components keep it resilient and reliable ride after ride.

Experience a 30% boost in power and torque with the Torp TC1000 Controller for your Talaria MX5. Enjoy up to 17 kW of peak power on the stock battery and motor, or opt for 72 V, or 80 V (22S) aftermarket batteries and push your bike all the way to 23 kW. Curious what your setup can do? Try the Power Calculator to preview expected performance.

Installation is simple, and performance tuning is easy with the Torp App. All stock Talaria features—such as the display, kick-stand sensor, crash sensor, power mode button, and brake switch—are retained, with the only exception being the start button.

Upgrade your Talaria MX5 and feel the power of the TC1000!

Important: The TC1000 controller kit for Talaria MX5 comes with the Torp thumb throttle! Please follow the special installation instructions.

Technical details & package contents

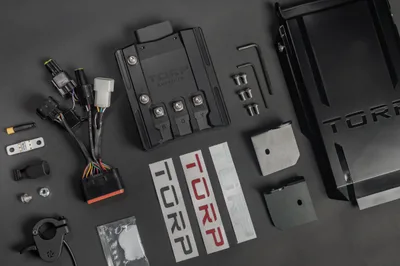

INCLUDED IN THE PACKAGE:

• 1x TC1000 Controller (version 2.X)
• 1x wire harness
• 1x thumb throttle
• 1x fuse with a plastic protection
• 1x plastic shield
• bolts and tools needed for installation
• 2x installation brackets
• 4x stickers
• 1x pack of silicone grease
• short instructions

SPECIFICATIONS:

• Field-oriented control (FOC)
• Supported batteries: Supported batteries: from 60V up to 80V nominal 22S (92,4 V fully charged)
• Max Power: 50kW
• Sensored (HALL Encoder) and sensorless control
• Max Battery Current: 700 A

Important: The controller CAN NOT communicate with the stock Talaria battery produced by SCUD. Please read before purchasing. Other controller functionalities are intact.

• Max phase current: 1000 A
• Efficiency up to 99%
• Working temperature: from -15 to 75 C°
• Bluetooth communication
• Pre-calibrated: Easy calibration through mobile app
• Overcurrent, overvoltage, undervoltage and overtemperature protection
• Communication with stock BMS
• Different regenerative braking and throttle modes
• Weight: 1,3kg
• Features: Mobile App (IOS & Android), stock SurRon display
• Protection class: IP67*
• Regular firmware updates

*While Torp controllers are rated IP67, making them highly water-resistant, the wiring harnesses for both the controller and bike are not waterproof. In case your bike is exposed to water in any way, it is mandatory to apply dielectric grease inside all connectors. The warranty does not cover malfunction or damage arising from the use of the motor controllers in activities where frequent or extended submersion in water is expected, such as riding in streams, rivers, or flooded areas. Over time, seals and components may degrade, reducing the water-resistant effectiveness of the product. Damage resulting from this natural wear and tear is not covered by the 2-year warranty.

Installation manual

Modifying a stock electric vehicle can result in the vehicle becoming non-compliant with your local road safety regulations. It’s essential to consult with experts or authorities before modifying your vehicle to ensure adherence to road legality.
