TC1000 2.X

Product details

New generation Plug&Play controller that will boost the power of your SurRon Light Bee/Segway X260 bike up to 19 kW. Pair it with the TM25 engine and get 31 kW of pure power. If you wish for a complete showstopper, then pair it with the TM40Pro motor and push your bike to an incredible 50kW. A quick and easy installation and intuitive setup through the mobile App. Curious what your setup can do? Try the Power Calculator to preview expected performance.

The new TC1000 controler 2.X comes with integrated wheelie control hardware enabling advanced stability control for perfect wheelies and enhanced riding dynamics (Wheelie Control available now in beta), while automotive-standard throttle support and over-current protection safeguard performance. Next-generation components keep it resilient and reliable—ride after ride.

IMPORTANT: The 2026 SurRon Light Bee (72V / 10 kW) uses a different wiring system compared with earlier 60V Light Bee models (up to 2025).

We are currently working on wiring compatibility for the 2026 model. The wiring harness supplied with this product is NOT compatible with the 2026 Light Bee (72V / 10 kW).

At this time, this product should only be ordered for 60V SurRon Light Bee models up to 2025. Compatibility with the 2026 model will be announced once testing and development are complete.

Technical details & package contents

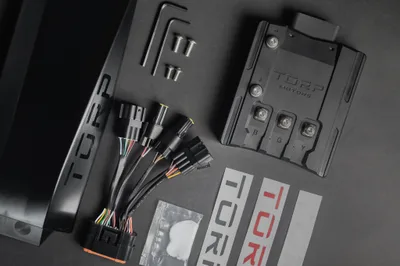

INCLUDED IN THE PACKAGE:

• 1x TC1000 Controller (version 2.X)
• 1x wire harness
• 1x plastic cover
• screws and tools needed for installation
• 4x stickers
• 1x pack of silicone grease
• short instructions

SPECIFICATIONS:

• Field-oriented control (FOC)
• Supported batteries: from 60V up to 80V nominal 22S (92,4 V fully charged)
• Max Power: 50kW*
• Sensored (HALL Encoder) and sensorless control
• Max Battery Current: 700 A
• Max phase current: 1000 A*

*Max power with the stock SurRon Light Bee motor is 19 kW (max 500 PA). Max power with the TM25 motor is 31 kW (max 800 PA). Max power with the TM40Pro motor is 50 kW (max 1000 PA).

• Efficiency up to 99%
• Working temperature: from -15 to 75 C°
• Bluetooth communication
• Pre-calibrated: No additional steps required
• Overcurrent, overvoltage, undervoltage and overtemperature protection
• Communication with stock BMS
• Different regenerative braking and throttle modes
• Weight: 1,3kg
• Features: Mobile App (IOS & Android), stock SurRon display
• Protection class: IP67*
• Regular firmware updates

*While Torp controllers are rated IP67, making them highly water-resistant, the wiring harnesses for both the controller and bike are not waterproof. In case your bike is exposed to water in any way, it is mandatory to apply dielectric grease inside all connectors. The warranty does not cover malfunction or damage arising from the use of the motor controllers in activities where frequent or extended submersion in water is expected, such as riding in streams, rivers, or flooded areas. Over time, seals and components may degrade, reducing the water-resistant effectiveness of the product. Damage resulting from this natural wear and tear is not covered by the 2-year warranty.

Modifying a stock electric vehicle can result in the vehicle becoming non-compliant with your local road safety regulations. It’s essential to consult with experts or authorities before modifying your vehicle to ensure adherence to road legality.
