TC1000 2.X

Product details

TC1000 controller has been developed to boost the performance of the SurRon Ultra Bee e-bikes. Get up to 27kW with Stock battery or 28kW with the bypassed 72V battery. Pair it with an 80V battery and the TM50 Pro or TM50 Speed motor and push your Ultra Bee to an incredible 50kW! Curious what your setup can do? Try the Power Calculator to preview expected performance.

The new TC1000 controler 2.X comes with integrated wheelie control hardware enabling advanced stability control for perfect wheelies and enhanced riding dynamics (Wheelie Control available now in beta), while automotive-standard throttle support and over-current protection safeguard performance. Next-generation components keep it resilient and reliable—ride after ride.

Easy to install and configure with just a couple of clicks of the app.

Technical details & package contents

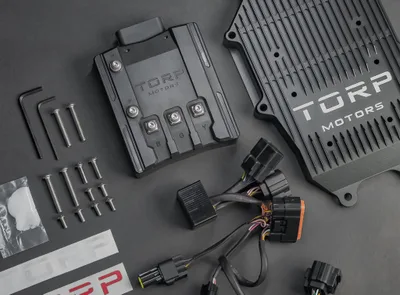

INCLUDED IN THE PACKAGE:

• 1x TC1000 Controller (version 2.X)
• 1x wire harness with special electronics
• 1x aluminum heatsink (comes in 3 different colors: black, red or blue)
• screws and tools needed for installation
• 4x stickers
• 1x pack of silicone grease
• short instructions

SPECIFICATIONS:

• Field-oriented control (FOC)
• Supported batteries: from 60V up to 80V nominal 22S (92,4 V fully charged)
• Max Power: 50kW*
• Sensored (HALL Encoder) and sensorless control
• Max Battery Current: 700 A
• Max phase current: 1000 A*

*The maximum power you can achieve depends on the motor and battery you are using. The max PA depends on your motor.

• Efficiency up to 99%
• Working temperature: from -15 to 75 C°
• Bluetooth communication
• Pre-calibrated: Easy calibration through mobile app
• Overcurrent, overvoltage, undervoltage and overtemperature protection
• Communication with stock BMS
• Different regenerative braking and throttle modes
• Weight: 1,3kg
• Features: Mobile App (IOS & Android), stock SurRon display
• Protection class: IP67*
• Regular firmware updates

*Torp controllers are rated IP67, making them water-resistant. The wiring harnesses for both the controller and the bike are not waterproof. Therefore, if your bike is exposed to water in any way, it is mandatory to apply dielectric grease inside all connectors. Additionally, the warranty does not cover damage arising from the use of the controllers in activities where frequent submersion in water is expected, such as riding in streams, rivers, or flooded areas. Over time, seals and components may degrade, reducing the water-resistant effectiveness, therefore, damage resulting from this natural wear and tear is not covered by the 2-year warranty.
