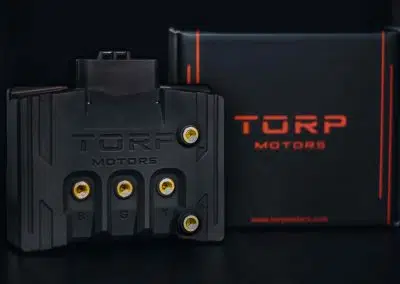

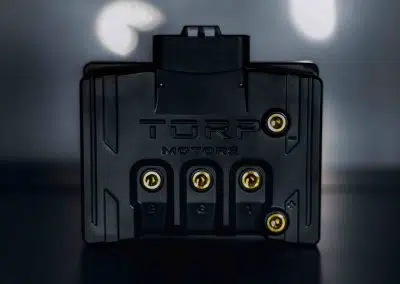

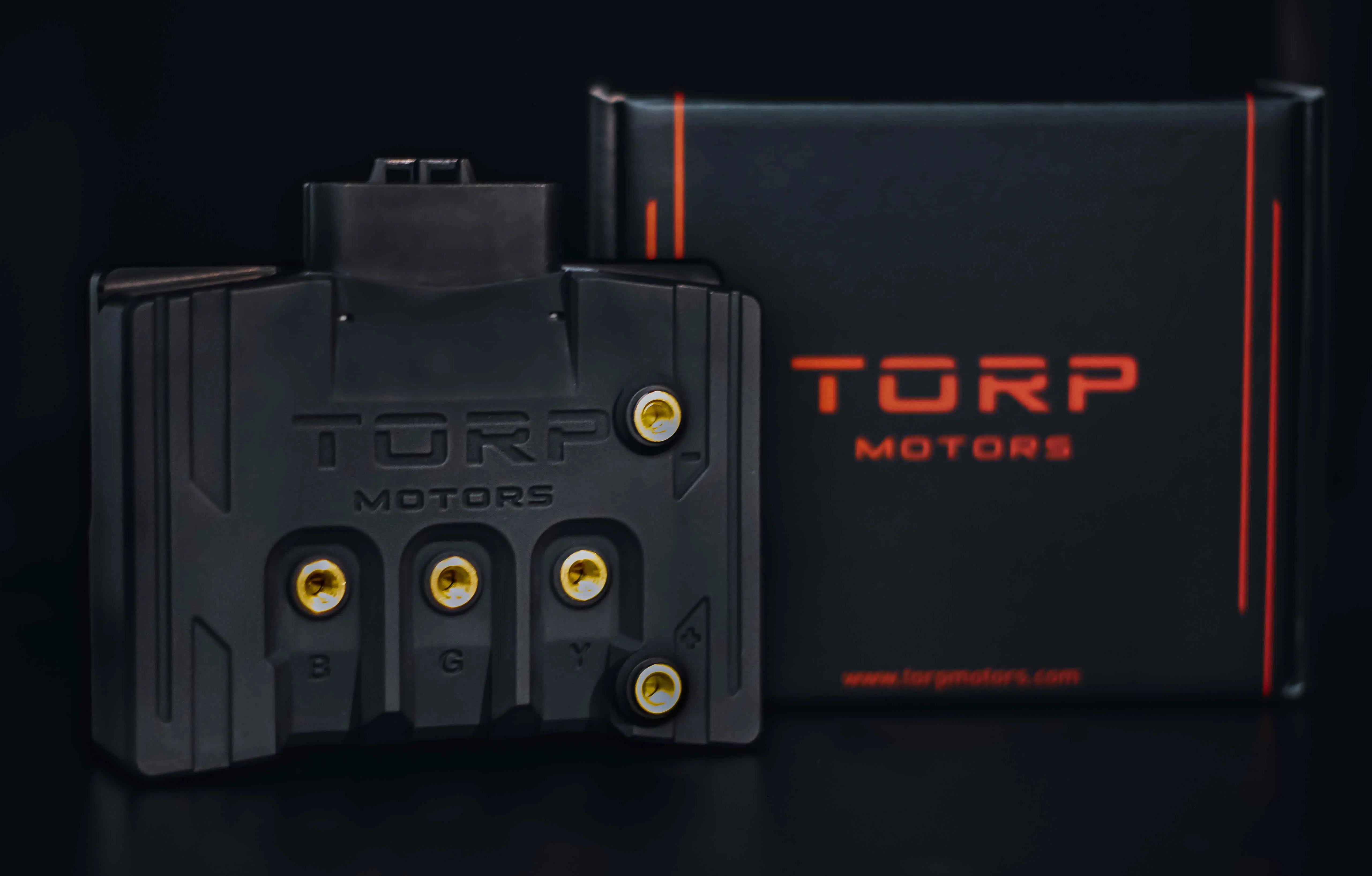

torp TC500 CONTROLLER.

Fully compatible with SurRon Light Bee / Segway X260

Talaria MX3/MX4 and the Torp TM25 motor

Lightning Icon

Powerful

25 kW

Weight

Light

1 kg

Weight

Plug & Play

Ready in 20 minutes

From our webshop to your doorstep in just 3-5 days!

The TORP TC500 controller is made to upgrade your e-bike to an electric beast, be it on the road or at the tracks!

First developed especially for the SurRon Light Bee and Segway X260 e-bikes, now also compatible with the new Torp TM25 motor and SurRon Ultra Bee.

FOC technology assures the smooth and predictable power-curve from the beginning to the end of the ride. In combination with a custom 72V battery, you will be able to boost the power of your e-bike up to 25kW! More specifications here.

Plug & Play in the true meaning of words. No previous knowledge of electronics is needed to install. Just follow the installation manual and you are set to go in less than 20 min! We did all the tiresome tuning and configuration for you, so you don’t have to.

DON`T LOSE FACTORY-SET FEATURES.

Z

Kick Stand Sensor

.

Z

Crash Sensor

Z

POWER MODE BUTTON

.

Z

STOCK DISPLAY

.

Z

Brake Switch

Z

In Tune with stock battery

*Each feature can be easily disabled through our App.

in tune with

the stock

battery.

The TC500 Controller is the only after-market controller that is in communication with stock SurRon and Talaria BMS. This unique feature enables the Controller to track battery temperature and cell voltage. It can also adjust the power according to the data it receives from BMS. All the stats can be accessed through the App.

dedicated display.

Despite the fact that the TC500 Controller works perfectly with the stock SurRon Light Bee and Talaria MX3 / MX4 display, we have developed a dedicated LCD, with which you will be able to track all of your controller and battery data in real time. This a perfect solution for all of you who do not want to use your smartphone while riding, but still want to keep an eye on all of your stats during the ride.

NEW: Now also available in full color!

change your settings through the app.

Although the Controller is pre-configured for SurRon/Segway and Talaria bikes, you can change features and power settings through a user-friendly mobile App.
With the mobile App, available for iOS and Android phones, you`ll have all the important stats in the palm of your hand.

Click to install:

WHAT POWER CAN I EXPECT?

TC500 for SurRon LB
Stock controller + Stock Battery4,8 kW
TC500 + Stock Battery (32 Ah / 34 Ah / 40 Ah)7 kW
TC500 + Stock 38 Ah Battery (depending on the battery manufacturer)8,5 kW
TC500 + Custom 60 V Battery**13,5 kW
TC500 + Custom 72 V Battery17 kW
TC500+Custom 72 V Battery + TM2523 kW

*There is no need to bypass the battery with the TC500, but in case you use the bypassed battery, the TC500 controller will work with it as well.

**Depending on the voltage sag.

TC500 for Talaria MX3
Stock controller + Stock Battery6 kW
TC500 + Stock Battery8 kW
TC500 + Custom 60 V Battery**13,5 kW
TC500 + Custom 72 V Battery17 kW

*There is no need to bypass the battery with the TC500, but in case you use the bypassed battery, the TC500 controller will work with it as well.

**Depending on the voltage sag.

TC500 for Talaria MX4
Stock controller + Stock Battery7 kW
TC500 + Stock Battery***11,5 kW
TC500 + Custom 60 V Battery**15 kW
TC500 + Custom 72 V Battery18 kW

*There is no need to bypass the battery with the TC500, but in case you use the bypassed battery, the TC500 controller will work with it as well.

**Depending on the voltage sag.

***Important: Currently the controller CAN NOT communicate with the stock Talaria battery produced by SCUD. Other controller functionalities are intact. Click for more information.

SPECIFICATIONS.

-Field-oriented control (FOC)
-Voltage 20-90V
-Max Power: 25kW*
-Sensored (HALL Encoder) and sensorless control
-Max Battery Current: 350 A*

*In combination with:

  • the stock SurRon e-motor, the max power is 17 kW
  • the stock Talaria MX4 e-motor, the max power is 18kW
  • TM25 motor the max power is 23 kW
  •



    -Max phase current: 500 A
    -Efficiency up to 99%
    -Working temperature: from -15 to 75 C°
    -Bluetooth communication
    -Pre-calibrated: No additional steps required
    -Overcurrent, overvoltage, undervoltage and overtemperature protection
    -Communication with stock BMS

    -Different regenerative braking and throttle modes
    -Weight: 1kg
    -Features: Mobile App (IOS & Android), stock SurRon display
    -Protection class: IP67
    -Regular firmware updates

    TAKE A CLOSER LOOK.

    Loading file
    • Fullscreen
    • Wireframe
    • Zoom In
    • Zoom Out
    • Rotation
    • Screenshot
    • Help

    Controls

    ×
    • Rotate with the left mouse button.
    • Zoom with the scroll button.
    • Adjust camera position with the right mouse button.
    • Double-click to enter the fullscreen mode.
    • On mobile devices swipe to rotate.
    • On mobile devices pinch two fingers together or apart to adjust zoom.
    • On mobile devices 3 finger horizontal swipe performs panning.
    • On mobile devices 3 finger horizontal swipe performs panning.

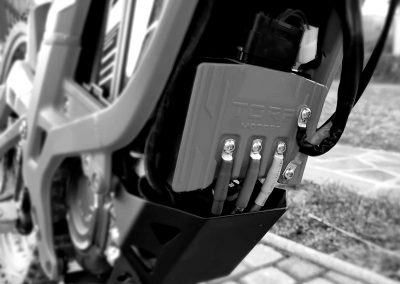

    INSTALLATION.

    Easier to install than the stock controller

    PLUG & PLAY in the true meaning of the word! Follow the instructions and be set in less than 20 minutes!

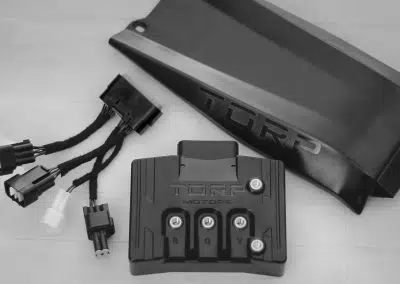

    In the package, you will receive a wire harness, a controller, and a controller shield with all screws and tools needed for installation.
